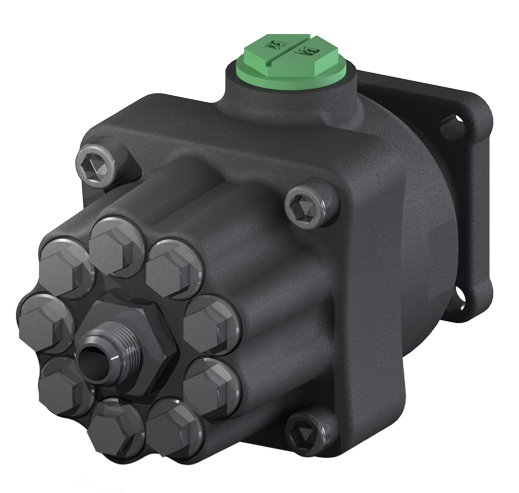

HYD 9 Element Piston Pump

Technical Specifications

Pump Type Flow Rate Max. Continuous Speed Max. Intermittent Speed (nmax) Min Intermittent Speed Max Continuous Pressure (Pnom) Max. Intermittent Pressure (Pmax) Max. Peak Pressure (Pmax)

lt/min n (min ̄¹) (≤ P1) n (min ̄¹) (P ≤ 30 bar) n (min ̄¹) bar bar bar bar

60 lt 60 1300 1500 300 250 270 300

80 lt 80 1200 1400 300 250 270 300
